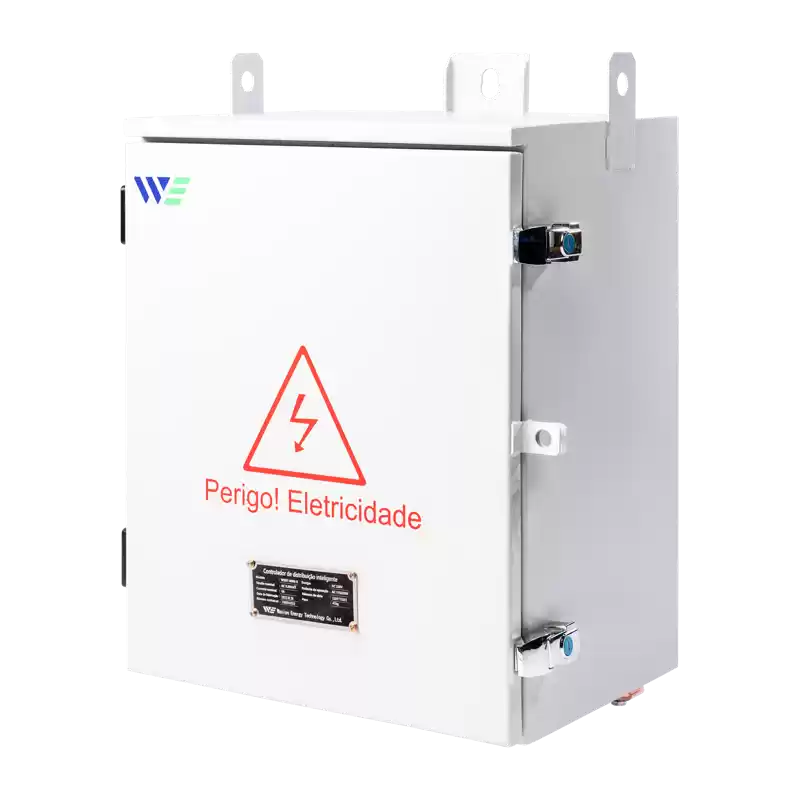

| ACR Controller |
| Parameter | Unit | Value | Value |
| Rated Input Phase Voltage | V | 3.25 / √3 | 3.25 / √3 |
| Rated Input Phase Current | A | 600 / 1, 800 / 1, 1000 / 1, Customized | 600 / 1, 800 / 1, 1000 / 1, Customized |
| Voltage Measurement Accuracy |
| Phase Voltage: ≤0.5%
Neutral Voltage: ≤0.5% | Phase Voltage: ≤0.5%
Neutral Voltage: ≤0.5% |
| Current Measurement Accuracy |
| Phase Protection: ≤0.5%(0.05In~1.2In)
Neutral Current: ≤5%(2%In~120%In) | Phase Protection: ≤0.5%(0.05In~1.2In)
Neutral Current: ≤5%(2%In~120%In) |
| Active Power, Reactive Power Accuracy |
| ≤1% | ≤1% |
| Switch Measurement and Control Capacity |
| Telemetry: collects incoming and outgoing line voltages, three-phase currents, neutral current, and neutral voltage.
Remote Signaling: at least 3 channels, such as for switch closed/open position, lockout, etc.
Remote Control: 1 channel for closing and opening. | Telemetry: collects incoming and outgoing line voltages, three-phase currents, neutral current, and neutral voltage.
Remote Signaling: at least 3 channels, such as for switch closed/open position, lockout, etc.
Remote Control: 1 channel for closing and opening. |
| AC Current Loop Overload Capacity |
| 2In, Continuous Work; 20In, 1s | 2In, Continuous Work; 20In, 1s |
| AC Voltage Circuit Overload Capacity |
| 1.2Un, Continuous Work | 1.2Un, Continuous Work |
| Degree of Protection |
| IP 65 | IP 65 |
| Dimensions | mm | 618*399*304 | 765*400*300 |
